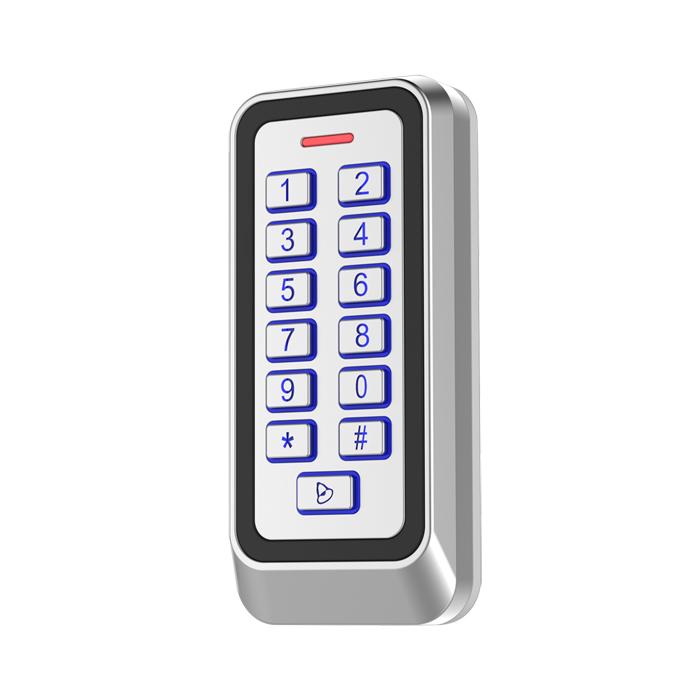

Waterproof, IP68 Stand Alone Access Controller with Em Reader
-Strong Zinc Alloy Electroplated anti-vandal case
-Full programming from the keypad
-2000 uses, supports Card, PIN, Card + PIN
-Can be used as a stand alone keypad
-Backlight keys
-Wiegand 26 output for connection to a controller
-Adjustable Door Output time, Alarm time, Door Open time
-Very low power consumption (30 mA)
-Fast operating speed, <20ms with 2000 users
-Lock output current short circuit protection
-Easy to install and program
-Built in light dependent resistor (LDR) for anti tamper
-Built in buzzer
-Red, Yellow and Green LEDS display the working status
Operating Voltage | 12V DC (9-28AC/DC) |
User Capacity | 2000 |
Card Reading Distance | 3-6 cm |
Active Current | ＜60mA |
Idle Current | 25±5 mA |
Lock Output Load | Max 20A |
Alarm Output Load | Max 20A |
Operating Temperature | -45～60℃ |
Operating Humidity | 10%- 90% RH |
Environment | Conforms to IP68 |
Adjustable Door Relay time | 0 -99 seconds |
Adjustable Alarm Time | 0- 3 minutes |
Wiegand Interface | Wiegand 26 bit |
Wiring Connections | Electric Lock, Exit Button,, External Alarm |
Dimensions | 120 x 56x 18 mm |
